Fire Hydrant / Landing Valves

Oblique Type Landing Valve : Gun Metal

Technical Specifications
Size : 63mm
Inlet : 80mm NB Flanged
Outlet : Female Instantaneous
Manufactured & tested as per standard laid in BIS Standard IS : 5290 - 1993
Performance Test
Hydraulic Test : 21kgf/cm 2
Water Tightness Test : 15kgf/cm 2
Flow Test : 900 LPM at 7 kgf/cm 2
Hand Wheel : Grey Cast Iron
Halogram : Sticker Stuck on Landing Valve

Oblique Type Landing Valve : Stainless Steel

Technical Specifications
Size : 63mm
Inlet : 80mm NB Flanged
Outlet : Female Instantaneous
Manufactured & tested as per standard laid in BIS Standard IS : 5290 - 1993
Performance Test
Hydraulic Test : 21kgf/cm2
Water Tightness Test : 15kgf/cm 2
Flow Test : 900 LPM at 7 kgf/cm 2
Hand Wheel : Grey Cast Iron
Halogram : Sticker Stuck on Landing Valve

Oblique Type Landing Valve : Stainless Steel

Technical Specifications
Size : 63mm
Inlet : 80mm NB Flanged
Outlet : Female Instantaneous
Manufactured & tested as per standard laid in BIS Standard IS : 5290 - 1993
Performance Test
Hydraulic Test : 21kgf/cm2
Water Tightness Test : 15kgf/cm 2
Flow Test : 900 LPM at 7 kgf/cm 2
Hand Wheel : Grey Cast Iron
Halogram : Sticker Stuck on Landing Valve

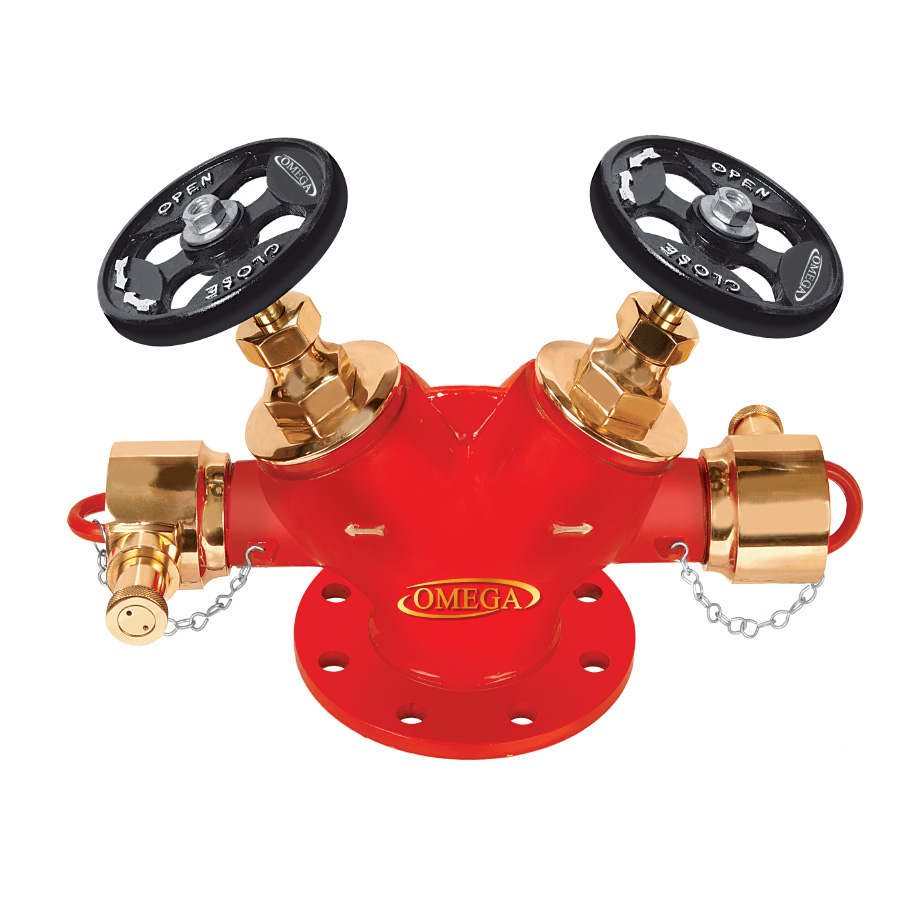

Double Outlet Landing Valve : Gun Metal

Technical Specifications
Size : 63mm
Inlet : 100mm NB Flanged
Outlet : Female Instantaneous
Manufactured & tested as per standard laid in BIS Standard IS : 5290 - 1993
Performance Test
Hydraulic Test : 21kgf/cm 2
Water Tightness Test : 14kgf/cm 2
Flow Test : 1800 LPM at 7 kgf/cm 2
Hand Wheel : Grey Cast Iron
Halogram : Sticker Stuck on Landing Valve

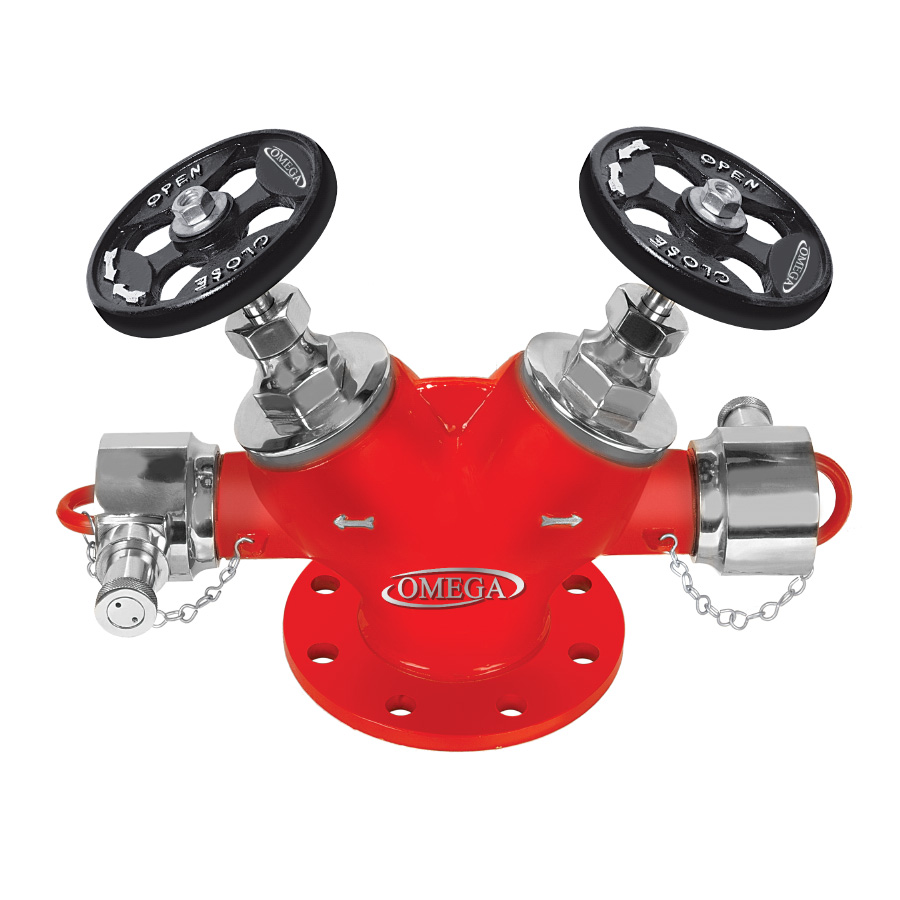

Double Outlet Landing Valve : Stainless Steel

Technical Specifications
Size : 63mm
Inlet : 100mm NB Flanged
Outlet : Female Instantaneous
Manufactured & tested as per standard laid in BIS Standard IS : 5290 - 1993
Performance Test
Hydraulic Test : 21kgf/cm 2
Water Tightness Test : 14kgf/cm 2
Flow Test : 1800 LPM at 7 kgf/cm 2
Hand Wheel : Grey Cast Iron
Halogram : Sticker Stuck on Landing Valve

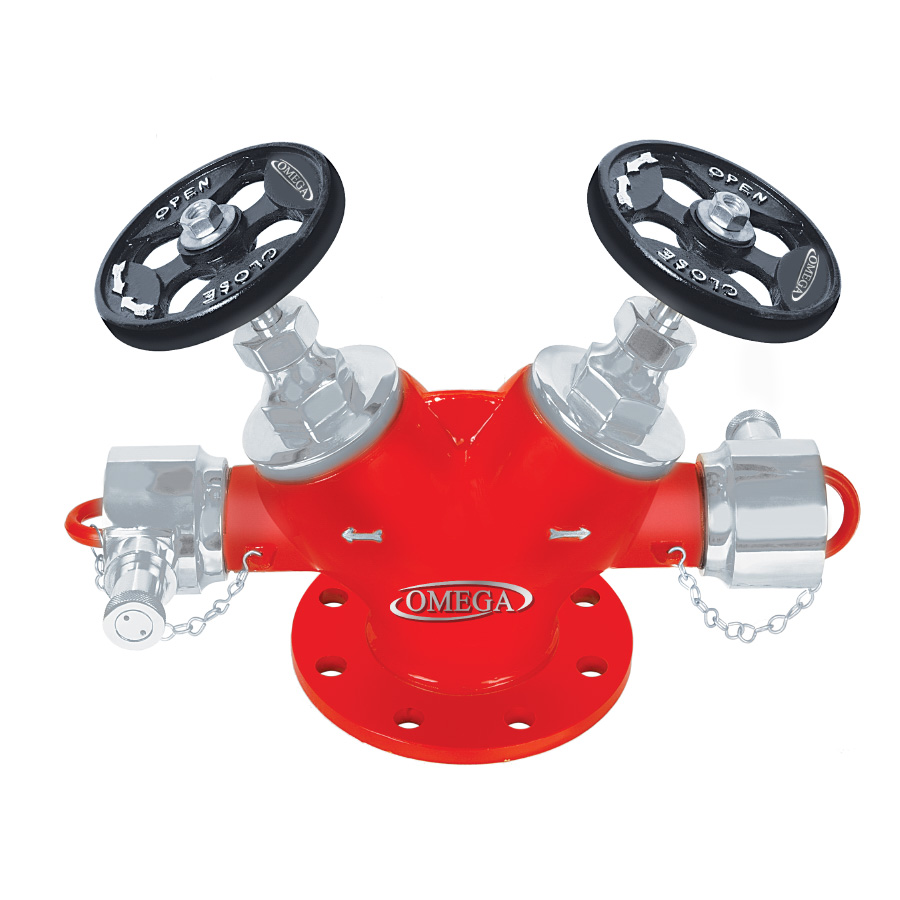

Double Outlet Landing Valve : Aluminum

Technical Specifications
Size : 63mm
Inlet : 100mm NB Flanged
Outlet : Female Instantaneous
Manufactured & tested as per standard laid in BIS Standard IS : 5290 - 1993
Performance Test
Hydraulic Test : 21kgf/cm 2
Water Tightness Test : 14kgf/cm 2
Flow Test : 1800 LPM at 7 kgf/cm 2
Hand Wheel : Grey Cast Iron
Halogram : Sticker Stuck on Landing Valve
