First Aid Hose Reel Drum & Pipes

First-Aid-Hose-Reel-Drum-&-Pipes

Swinging Type Wall Mounted First Aid Hose Reel Drum

Technical Specifications
  • Size: Inlet : 1” Threaded lnlet Connection
  • Type : Swinging 180o Wall Mounting
  • Outlet : 3/4” / 1” / 1-1/2 outlet connection For House to accommodate 30/ 36/ 40 Mtrs. Hoses
Performance Test
  • Hydrostatic Test : Tested at 21 Kgf/cm 2
    Range & Water Flow rate test at 7 Kgf/ cm 2
  • (A) Discharge: 24 LPM
  • (B) Range (Jet Length) : 6 Mtr (Min)
  • Halogram:- Sticker Stuck on Wheel
Hub Sides & Wall Bracket : Mild Steel
Swivel Joint : Die Casted Aluminum
Pipe with Fitting : Mild Steel
Shut of Nozzle : Plastic / Gun Metal / Brass
Hose Reel Tubing : Thermoplastic Hose confirming to IS : 12585-1988 (Type-1/Type-2)

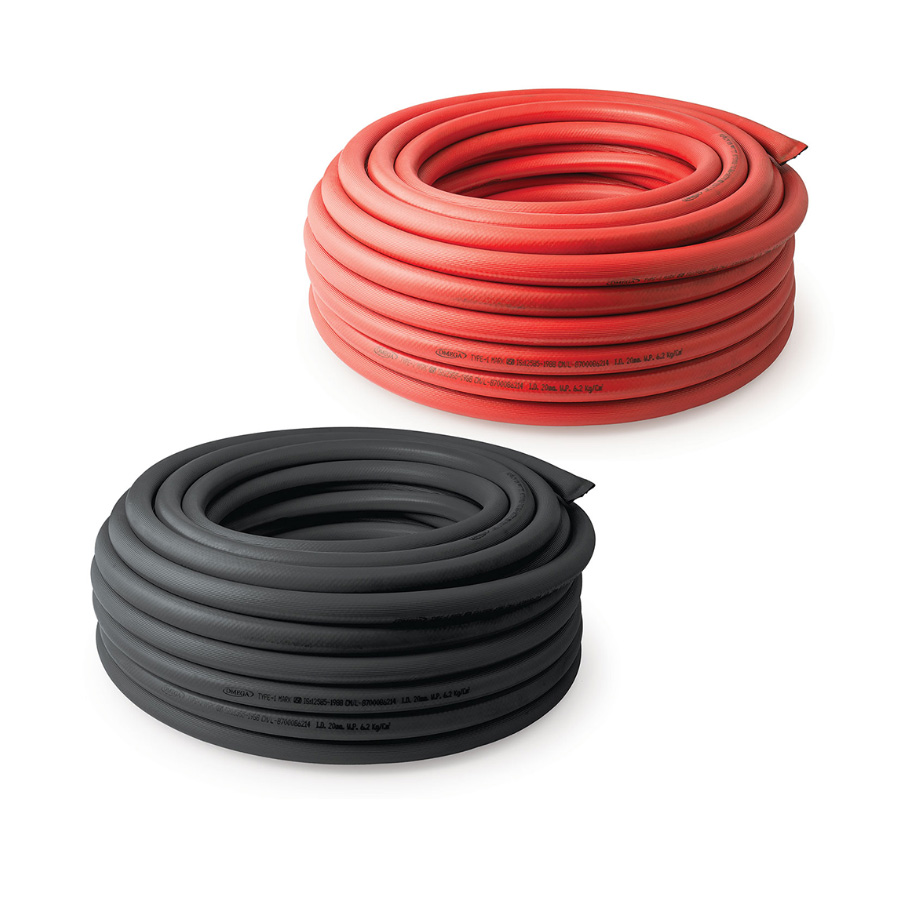

Thermoplastic_Hose_Pipe_Textile_Reinforced_Water

Thermoplastic Hose Pipe Textile Reinforced ) for Water

Technical Specifications
  • Conforming to : -
    IS: 12585 - 1988 Type - 1 W.P. 6 Kgf/cm 2
    IS: 12585 - 1988 Type - 2 W.P. 10 Kgf/cm 2
  • Construction:-
    Lining : A flexible Thermoplastic Lining, Smooth in bore.
  • Reinforcement : A Natural or Synthetic Textile
  • Reinforcement : A flexible thermoplastics cover, which may have a smooth or fluted.
  • Nominal Bore (ID) : 10.00 mm to 50.00 mm
  • Application : This Hose is used for water delivery & Fire Fighting purpose.
