Short Branch Pipe with Nozzle

Short_Branch_Pipe_Nozzle

Short Branch Pipe with Nozzle : Gun Metal

Technical Specifications
  • Size of Branch Pipe : 63mm
  • Size of Nozzles : 6mm, 12mm, 15mm, 20mm & 25mm
  • Material : Gun metal/ Stainless Steel/Aluminium Alloy manufactured and tested as per the BIS standard laid in
  • IS : 903-1993
Performance Test
  • Hydrostatic Test : Tested at 21 Kgf/cm2
  • Working Pressure : 7Kgf/cm2
  • Finish : Natural Polished
  • Halogram : Sticker Stuck on Nozzle
Type of Material : Gun Metal
Body, Assembly : LTB2 - IS:318
Rubber Washer. : IS:937 (Type-B)
Short_Branch_Pipe_Nozzle

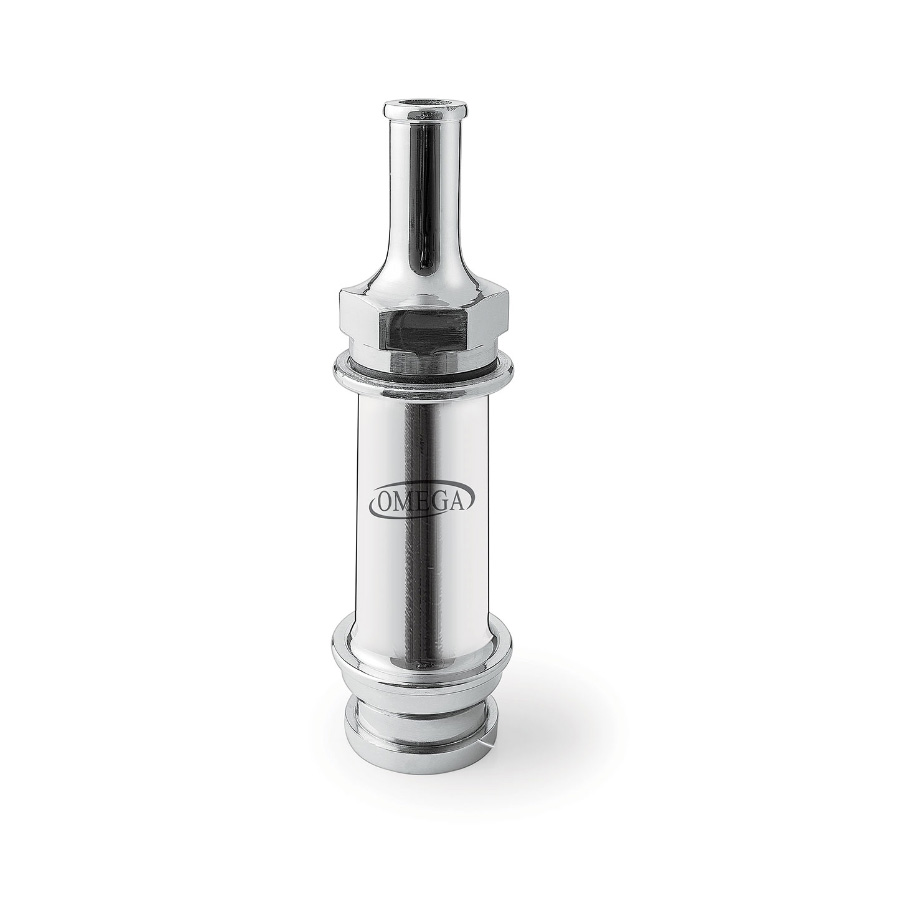

Short Branch Pipe with Nozzle : Stainless Steel

Technical Specifications
  • Size of Branch Pipe : 63mm
  • Size of Nozzles : 6mm, 12mm, 15mm, 20mm & 25mm
  • Material : Gun metal/ Stainless Steel/Aluminium Alloy manufactured and tested as per the BIS standard laid in
  • IS : 903-1993
Performance Test
  • Hydrostatic Test : Tested at 21 Kgf/cm2
  • Working Pressure : 7Kgf/cm2
  • Finish : Natural Polished
  • Halogram : Sticker Stuck on Nozzle
Type of Material : Stainless Steel
Body, Assembly : Stainless Steel - IS : 3444
Rubber Washer. : IS : 937 (Type-B)
Short_Branch_Pipe_Nozzle_Aluminum

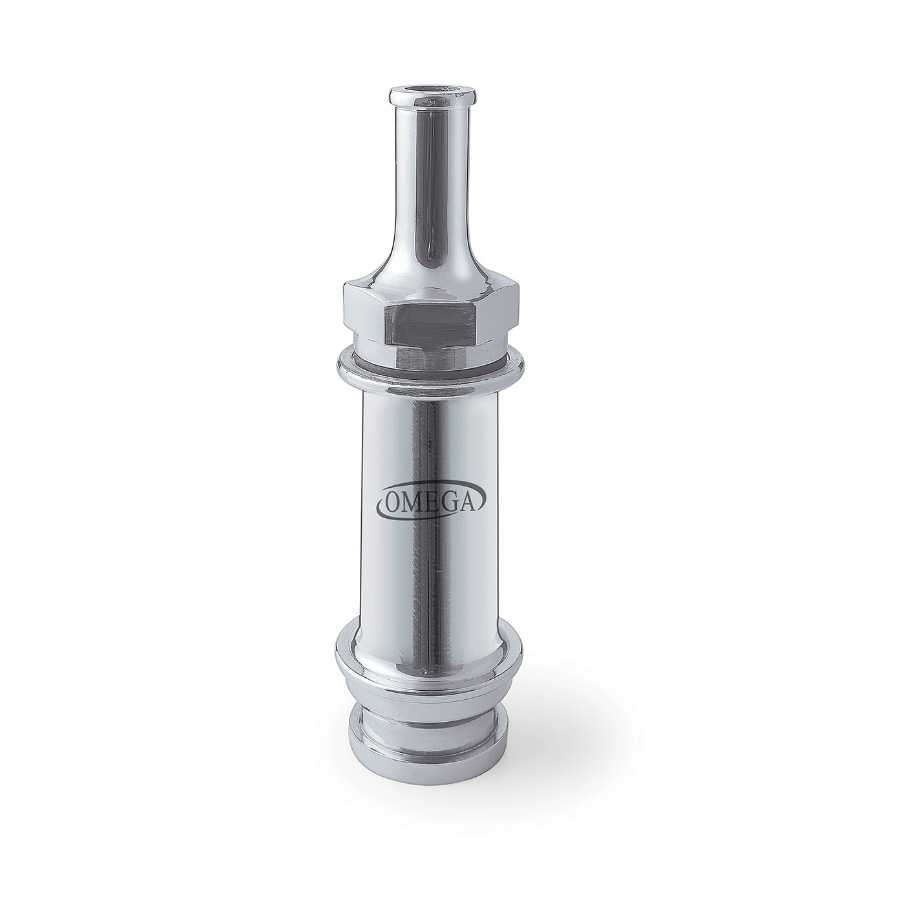

Short Branch Pipe with Nozzle : Aluminum

Technical Specifications
  • Size of Branch Pipe : 63mm
  • Size of Nozzles : 6mm, 12mm, 15mm, 20mm & 25mm
  • Material : Gun metal/ Stainless Steel/Aluminium Alloy manufactured and tested as per the BIS standard laid in
  • IS : 903-1993
Performance Test
  • Hydrostatic Test : Tested at 21 Kgf/cm2
  • Working Pressure : 7Kgf/cm2
  • Finish : Natural Polished
  • Halogram : Sticker Stuck on Nozzle
Type of Material : Aluminum
Body, Assembly : IS:617
Rubber Washer. : IS : 937 (Type-A)
